Technical Features
Horizontal injection system,achieve stable plasticizing and easy operation.
Single beam mold locking structure make mould loading more convenient.
Servo drive, energy saving 25-45%.
Large capacity mold installation size for higher output.
Stripping plate overturn pneumatically, safe and clean.
Optional
Product Application
Advantage
![](https://www.victorplas.com/wp-content/uploads/2023/09/Clamping-parts-150x150.png)
Special designed single crossbar dual-cylinder balance clamping system,for fast opening and closing mold while ensuring uniform distribution.
![](https://www.victorplas.com/wp-content/uploads/2023/09/Rotation-mechanism-150x150.png)
Unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.
![](https://www.victorplas.com/wp-content/uploads/2023/09/Injection-components-150x150.png)
Alternative efficient plasticizing mixing screw, optimization of the injection unt,improve the injection stability and accuracy.
![](https://www.victorplas.com/wp-content/uploads/2023/09/Hydraulic-system-150x150.png)
Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%.
![](https://www.victorplas.com/wp-content/uploads/2023/09/Rotation-mechanism-1-150x150.png)
Processing principle
![](https://www.victorplas.com/wp-content/uploads/2023/09/processing-principle.jpeg)
Parameter Table
Technical Parameters | ||
Preform system | Unit | MSZ30 |
Screw diameter | mm | 40 |
Screw L/D | L/D | 23:1 |
Shot volume | cm3 | 200 |
Injection weight(HDPE) | g | 190 |
Max.Screw speed | rpm | 10-225 |
Heating capacity | KW | 8.3 |
No.of heating zone | Qty | 3+N |
Clamping system | ||
Clamping force of preform | KN | 289.7 |
Clamping force of blowing | KN | 46.7 |
Opening stroke of mold planten | mm | 120 |
Lifting H of rotary table | mm | 65 |
Max.Platen size(L×W) | mm | 400×270 |
Min.mold thickness(H) | mm | 180 |
Heating capacity of mould | KW | 3 |
Stripping system | ||
Stripping stroke | mm | 220 |
Dry cycle | sec | 3.5 |
Driving system | ||
Motor power | KW | 18.2 |
Hydraulic pressure | Mpa | 14 |
Product range | ||
Suitable bottle range | ml | 5-800 |
MAX.bottle height | mm | ≤190 |
Max.Dia.of bottle | mm | ≤100 |
Other | ||
Min.air pressure | Mpa | 1 |
Discharge rate of compressed air | m3/mm | ≥0.7 |
Water flowage | m3/h | 3 |
Total rated power with mold heating | KW | 29.5 |

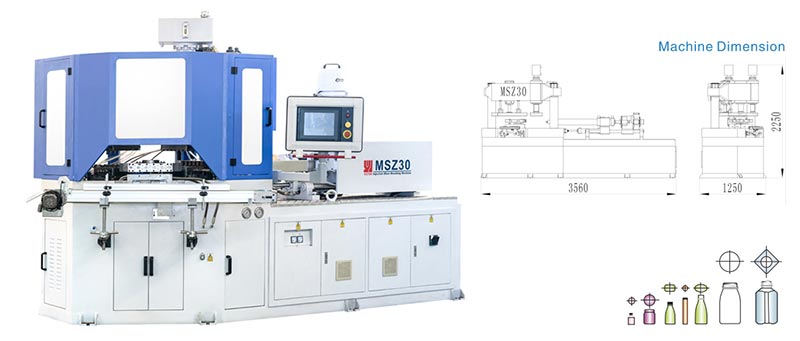

Dimension(L×W×H) | M | 3.56×1.25×2.25 |
Net weight | ton | 4 |
